Product Attributes

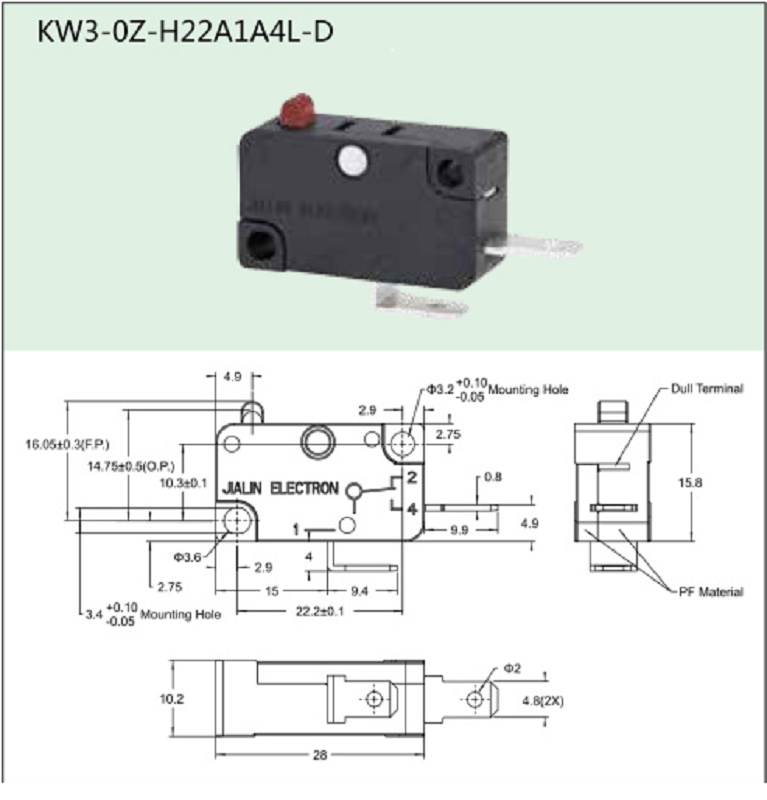

Model No.: KW3-0Z-H22A1A4L-D
Brand: DONGHAI
Pressing Type: Push-Button
Number of Switch: Single Control Switch
Size: Normal Size
Certification: SGS
Circuit Code: SPST-NO
Enviroment: 0℃~120℃
Operating Force On The End Of The Button: 4.5N Max
Rating: Maximum Load Capacity Up To 25(25)A 250V
Supply Ability & Additional Information
Packaging: Carton
Transportation: Ocean,Air
Place of Origin: NINGBO,CHINA
Certificate: ISO9001;IATF16949
HS Code: 853650
Port: NINGBO,SHANGHAI,SHENZHEN
Payment Type: T/T
Incoterm: FOB,CFR,CIF,EXW
Packaging & Delivery
- Selling Units:
- Piece/Pieces
- Package Type:
- Carton
Description
1. Model:KW3-OZ
2.Rating: Maximum load capacity up to 25(25)A 250VAC
3. Contact resistance: ≤50mohm.
4. Switch Function:S. P. S.T.N.O5.Terminal Type: 4.8X0.8mm 187 Quick connect terminal
6. Operating Force on the top end of the Button:4.5N max
7.Plunger :2.7mm Bakelite
